Hi,
I'm using Payne-Gaposchkin release to run the BBHLowRes.par example
basically, follow this instruction https://arxiv.org/abs/1305.5299 https://arxiv.org/abs/1305.5299

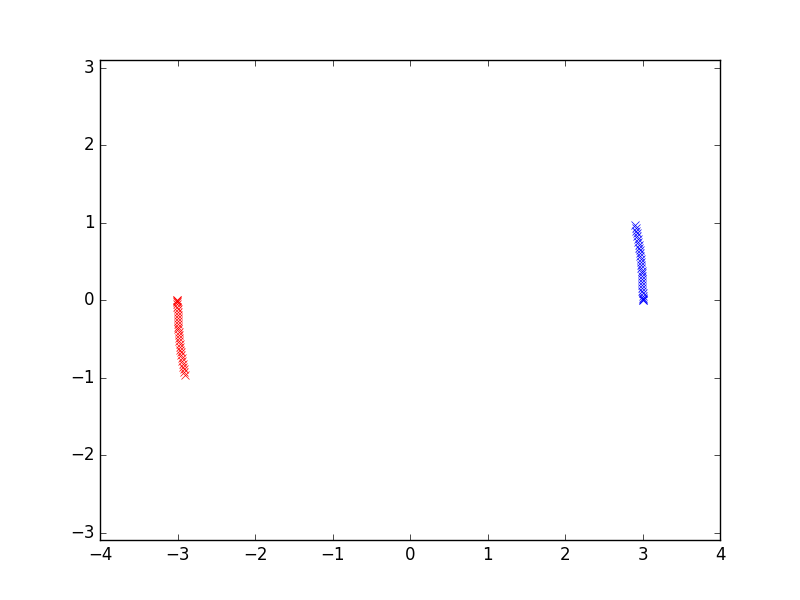

however, it seems that the simlution terminated too early. this is the plot of data in BH_diagnostics.ahX.gp i got
i noticed that in the output of "sim list-sim" it says "Warning: job status is U"
and this is the from .err file in output-0000 (partially) ================================================ .................................
WARNING level 1 from host kpc-VirtualBox process 0 while executing schedule bin CCTK_PARAMCHECK, routine ML_BSSN_Helper::ML_BSSN_ParamCheck in thorn ML_BSSN_Helper, file /home/kuangtly/programming/ET/forfun/Cactus/arrangements/McLachlan/ML_BSSN_Helper/src/Parameters.c:204: -> Parameter ML_BSSN::ShiftAdvectionCoeff is outdated; please update the parameter file. Instead of using this parameter, you should set ML_BSSN::advectShift. WARNING level 1 from host kpc-VirtualBox process 0 while executing schedule bin (none), routine (no thorn)::(no routine) in thorn CarpetRegrid2, file /home/kuangtly/programming/ET/forfun/Cactus/arrangements/Carpet/CarpetRegrid2/src/regrid.cc:389: -> Could not enforce grid structure properties in this round, starting another round WARNING level 0 from host kpc-VirtualBox process 0 while executing schedule bin BoundaryConditions, routine RotatingSymmetry180::Rot180_ApplyBC in thorn RotatingSymmetry180, file /home/kuangtly/programming/ET/forfun/Cactus/arrangements/CactusNumerical/RotatingSymmetry180/src/rotatingsymmetry180.c:447: -> TAT/Slab can only be used if there is a single local component per MPI process cactus_sim: /home/kuangtly/programming/ET/forfun/Cactus/arrangements/Carpet/Carpet/src/helpers.cc:275: int Carpet::Abort(const cGH*, int): Assertion `0' failed. Rank 0 with PID 15757 received signal 6 Writing backtrace to mybbh/backtrace.0.txt Aborted (core dumped) =====================================================
I can't figure out what's the problem, even where to get the error message correctly. I have try to change the initial data given by "two puncture", and it turns out that those BH can't move too far as above, although they really changed the trajectory.
Environment: virtualBox 8G RAM assigned Ubuntu 16.04.1
Could anyone give me some hint~
Thanks a lot ! Cory
Cory
The root of the problem is this:
On Thu, Dec 22, 2016 at 3:50 PM, Cory Chu cory.yk.chu@gmail.com wrote:
TAT/Slab can only be used if there is a single local component per MPI process
The thorn TAT/Slab has certain limitations, and these require that a certain minimum number of MPI processes is used, so that certain operations can occur simultaneously. If you increase the number of MPI processes the error should go away.
-erik
On 22 Dec 2016, at 22:56, Erik Schnetter schnetter@cct.lsu.edu wrote:
Cory
The root of the problem is this:
On Thu, Dec 22, 2016 at 3:50 PM, Cory Chu cory.yk.chu@gmail.com wrote: TAT/Slab can only be used if there is a single local component per MPI process
The thorn TAT/Slab has certain limitations, and these require that a certain minimum number of MPI processes is used, so that certain operations can occur simultaneously. If you increase the number of MPI processes the error should go away.
Should the error message be expanded to explain how to solve the problem?
Erik
Should I simply change the .ini file in simfactory/mdb/machines with ppn = 2 max-num-threads = 2 num-threads = 2
and adding --procs = 2 on running command ?
sorry i just can not find a detail documentation on this part after i change the above setting the problem did not solved
Cory
On Fri, Dec 23, 2016 at 5:56 AM, Erik Schnetter schnetter@cct.lsu.edu wrote:
Cory
The root of the problem is this:
On Thu, Dec 22, 2016 at 3:50 PM, Cory Chu cory.yk.chu@gmail.com wrote:
TAT/Slab can only be used if there is a single local component per MPI process
The thorn TAT/Slab has certain limitations, and these require that a certain minimum number of MPI processes is used, so that certain operations can occur simultaneously. If you increase the number of MPI processes the error should go away.
-erik
-- Erik Schnetter schnetter@cct.lsu.edu http://www.perimeterinstitute.ca/personal/eschnetter/
On 23 Dec 2016, at 10:52, Cory Chu cory.yk.chu@gmail.com wrote:
Erik
Should I simply change the .ini file in simfactory/mdb/machines with ppn = 2 max-num-threads = 2 num-threads = 2
and adding --procs = 2 on running command ?
sorry i just can not find a detail documentation on this part after i change the above setting the problem did not solved
Hi Cory,
Can you give the command line you are using to submit the simulation? You need to ensure that the number of MPI processes you use is larger. You could do this by running fewer threads per process, or if you are already running one thread per process, by increasing the number of processes by increasing the number of threads. That might mean reconfiguring the machine definition to allow more cores to be used than you actually have. What machine is it; i.e. how many processors and cores do you have?
Hi Ian
I'am running on VirtualBox set whit 2 Processors and 8GB RAM
When i try with this submit command
create-submit mybbh --parfile par/BBHLowRes.par --num-threads=1 --procs=2
I get following message in .err file
WARNING level 0 from host kpc-VirtualBox process 0 while executing schedule bin (none), routine (no thorn)::(no routine) in thorn Carpet, file /home/kuangtly/programming/ET/forfun/Cactus/arrangements/Carpet/Carpet/src/SetupGH.cc:153: -> The environment variable CACTUS_NUM_PROCS is set to 2, but there are 1 MPI processes. This may indicate a severe problem with the MPI startup mechanism. cactus_sim: /home/kuangtly/programming/ET/forfun/Cactus/arrangements/Carpet/Carpet/src/helpers.cc:275: int Carpet::Abort(const cGH*, int): Assertion `0' failed. Rank 0 with PID 15985 received signal 6 Writing backtrace to BBHLowRes/backtrace.0.txt Aborted (core dumped)
i have change these setting in .ini file ppn =2 max-num-threads =2 num-threads =2
On Fri, Dec 23, 2016 at 6:28 PM, Ian Hinder ian.hinder@aei.mpg.de wrote:
On 23 Dec 2016, at 10:52, Cory Chu cory.yk.chu@gmail.com wrote:
Erik
Should I simply change the .ini file in simfactory/mdb/machines with ppn = 2 max-num-threads = 2 num-threads = 2
and adding --procs = 2 on running command ?
sorry i just can not find a detail documentation on this part after i change the above setting the problem did not solved
Hi Cory,
Can you give the command line you are using to submit the simulation? You need to ensure that the number of MPI processes you use is larger. You could do this by running fewer threads per process, or if you are already running one thread per process, by increasing the number of processes by increasing the number of threads. That might mean reconfiguring the machine definition to allow more cores to be used than you actually have. What machine is it; i.e. how many processors and cores do you have?
-- Ian Hinder http://members.aei.mpg.de/ianhin
Cory
Using "--procs=4 --num-threads=1" might help. You do not need to change the settings in the ".ini" file; only the command line parameters determine how many MPI processes are used.
-erik
On Fri, Dec 23, 2016 at 8:12 AM, Cory Chu cory.yk.chu@gmail.com wrote:
Hi Ian
I'am running on VirtualBox set whit 2 Processors and 8GB RAM
When i try with this submit command
create-submit mybbh --parfile par/BBHLowRes.par --num-threads=1 --procs=2
I get following message in .err file
WARNING level 0 from host kpc-VirtualBox process 0 while executing schedule bin (none), routine (no thorn)::(no routine) in thorn Carpet, file /home/kuangtly/programming/ET/forfun/Cactus/arrangements/Carpet/Carpet/src/SetupGH.cc:153: -> The environment variable CACTUS_NUM_PROCS is set to 2, but there are 1 MPI processes. This may indicate a severe problem with the MPI startup mechanism. cactus_sim: /home/kuangtly/programming/ET/forfun/Cactus/arrangements/Carpet/Carpet/src/helpers.cc:275: int Carpet::Abort(const cGH*, int): Assertion `0' failed. Rank 0 with PID 15985 received signal 6 Writing backtrace to BBHLowRes/backtrace.0.txt Aborted (core dumped)
i have change these setting in .ini file ppn =2 max-num-threads =2 num-threads =2
On Fri, Dec 23, 2016 at 6:28 PM, Ian Hinder ian.hinder@aei.mpg.de wrote:
On 23 Dec 2016, at 10:52, Cory Chu cory.yk.chu@gmail.com wrote:
Erik
Should I simply change the .ini file in simfactory/mdb/machines with ppn = 2 max-num-threads = 2 num-threads = 2
and adding --procs = 2 on running command ?
sorry i just can not find a detail documentation on this part after i change the above setting the problem did not solved
Hi Cory,
Can you give the command line you are using to submit the simulation? You need to ensure that the number of MPI processes you use is larger. You could do this by running fewer threads per process, or if you are already running one thread per process, by increasing the number of processes by increasing the number of threads. That might mean reconfiguring the machine definition to allow more cores to be used than you actually have. What machine is it; i.e. how many processors and cores do you have?
-- Ian Hinder http://members.aei.mpg.de/ianhin
Erik
Actually, even with --procs=2 --num-threads=1 I will get: The environment variable CACTUS_NUM_PROCS is set to 2, but there are 1 MPI processes.
However, with only --procs=2 can really start a simulation, and terminate due to TAT/Slab limitation
Is there any configuration corresponding to "but there are 1 MPI processes. This may indicate a severe problem with the MPI startup mechanism."
I'm using optionlist ubuntu.cfg submitscript generic.sub runscript debian.run
Cory
On Fri, Dec 23, 2016 at 9:44 PM, Erik Schnetter schnetter@cct.lsu.edu wrote:
Cory
Using "--procs=4 --num-threads=1" might help. You do not need to change the settings in the ".ini" file; only the command line parameters determine how many MPI processes are used.
-erik
On Fri, Dec 23, 2016 at 8:12 AM, Cory Chu cory.yk.chu@gmail.com wrote:
Hi Ian
I'am running on VirtualBox set whit 2 Processors and 8GB RAM
When i try with this submit command
create-submit mybbh --parfile par/BBHLowRes.par --num-threads=1 --procs=2
I get following message in .err file
WARNING level 0 from host kpc-VirtualBox process 0 while executing schedule bin (none), routine (no thorn)::(no routine) in thorn Carpet, file /home/kuangtly/programming/ET/forfun/Cactus/arrangements/
Carpet/Carpet/src/SetupGH.cc:153:
-> The environment variable CACTUS_NUM_PROCS is set to 2, but there
are 1
MPI processes. This may indicate a severe problem with the MPI startup mechanism. cactus_sim: /home/kuangtly/programming/ET/forfun/Cactus/arrangements/
Carpet/Carpet/src/helpers.cc:275:
int Carpet::Abort(const cGH*, int): Assertion `0' failed. Rank 0 with PID 15985 received signal 6 Writing backtrace to BBHLowRes/backtrace.0.txt Aborted (core dumped)
i have change these setting in .ini file ppn =2 max-num-threads =2 num-threads =2
On Fri, Dec 23, 2016 at 6:28 PM, Ian Hinder ian.hinder@aei.mpg.de
wrote:
On 23 Dec 2016, at 10:52, Cory Chu cory.yk.chu@gmail.com wrote:
Erik
Should I simply change the .ini file in simfactory/mdb/machines with ppn = 2 max-num-threads = 2 num-threads = 2
and adding --procs = 2 on running command ?
sorry i just can not find a detail documentation on this part after i change the above setting the problem did not solved
Hi Cory,
Can you give the command line you are using to submit the simulation?
You
need to ensure that the number of MPI processes you use is larger. You could do this by running fewer threads per process, or if you are
already
running one thread per process, by increasing the number of processes by increasing the number of threads. That might mean reconfiguring the
machine
definition to allow more cores to be used than you actually have. What machine is it; i.e. how many processors and cores do you have?
-- Ian Hinder http://members.aei.mpg.de/ianhin
-- Erik Schnetter schnetter@cct.lsu.edu http://www.perimeterinstitute.ca/personal/eschnetter/
Cory
This indicates a severe problem. The most likely reason is that there are two processes started, but they don't "find" each other, and then both run independently thinking that there are the only process.
This can be caused by a mixup of MPI implementation. If you have two MPI implementations installed, then you might be using one of them to compile, but you might be using the "mpirun" command of the other one. You will need to correct this for things to work. It's difficult to tell from the outside what went wrong. The output from Cactus when it configured should/might have stated where the MPI implementation is located (e.g. "/usr/local"), and if you type "which mpirun", it should tell you which you are using (maybe "/usr").
-erik
On Fri, Dec 23, 2016 at 11:07 AM, Cory Chu cory.yk.chu@gmail.com wrote:
Erik
Actually, even with --procs=2 --num-threads=1 I will get: The environment variable CACTUS_NUM_PROCS is set to 2, but there are 1 MPI processes.
However, with only --procs=2 can really start a simulation, and terminate due to TAT/Slab limitation
Is there any configuration corresponding to "but there are 1 MPI processes. This may indicate a severe problem with the MPI startup mechanism."
I'm using optionlist ubuntu.cfg submitscript generic.sub runscript debian.run
Cory
On Fri, Dec 23, 2016 at 9:44 PM, Erik Schnetter schnetter@cct.lsu.edu wrote:
Cory
Using "--procs=4 --num-threads=1" might help. You do not need to change the settings in the ".ini" file; only the command line parameters determine how many MPI processes are used.
-erik
On Fri, Dec 23, 2016 at 8:12 AM, Cory Chu cory.yk.chu@gmail.com wrote:
Hi Ian
I'am running on VirtualBox set whit 2 Processors and 8GB RAM
When i try with this submit command
create-submit mybbh --parfile par/BBHLowRes.par --num-threads=1 --procs=2
I get following message in .err file
WARNING level 0 from host kpc-VirtualBox process 0 while executing schedule bin (none), routine (no thorn)::(no routine) in thorn Carpet, file
/home/kuangtly/programming/ET/forfun/Cactus/arrangements/Carpet/Carpet/src/SetupGH.cc:153: -> The environment variable CACTUS_NUM_PROCS is set to 2, but there are 1 MPI processes. This may indicate a severe problem with the MPI startup mechanism. cactus_sim:
/home/kuangtly/programming/ET/forfun/Cactus/arrangements/Carpet/Carpet/src/helpers.cc:275: int Carpet::Abort(const cGH*, int): Assertion `0' failed. Rank 0 with PID 15985 received signal 6 Writing backtrace to BBHLowRes/backtrace.0.txt Aborted (core dumped)
i have change these setting in .ini file ppn =2 max-num-threads =2 num-threads =2
On Fri, Dec 23, 2016 at 6:28 PM, Ian Hinder ian.hinder@aei.mpg.de wrote:
On 23 Dec 2016, at 10:52, Cory Chu cory.yk.chu@gmail.com wrote:
Erik
Should I simply change the .ini file in simfactory/mdb/machines with ppn = 2 max-num-threads = 2 num-threads = 2
and adding --procs = 2 on running command ?
sorry i just can not find a detail documentation on this part after i change the above setting the problem did not solved
Hi Cory,
Can you give the command line you are using to submit the simulation? You need to ensure that the number of MPI processes you use is larger. You could do this by running fewer threads per process, or if you are already running one thread per process, by increasing the number of processes by increasing the number of threads. That might mean reconfiguring the machine definition to allow more cores to be used than you actually have. What machine is it; i.e. how many processors and cores do you have?
-- Ian Hinder http://members.aei.mpg.de/ianhin
-- Erik Schnetter schnetter@cct.lsu.edu http://www.perimeterinstitute.ca/personal/eschnetter/
users@lists.einsteintoolkit.org
-
Cory Chu -
Erik Schnetter -
Ian Hinder
