Hello Chia Hui Lin,

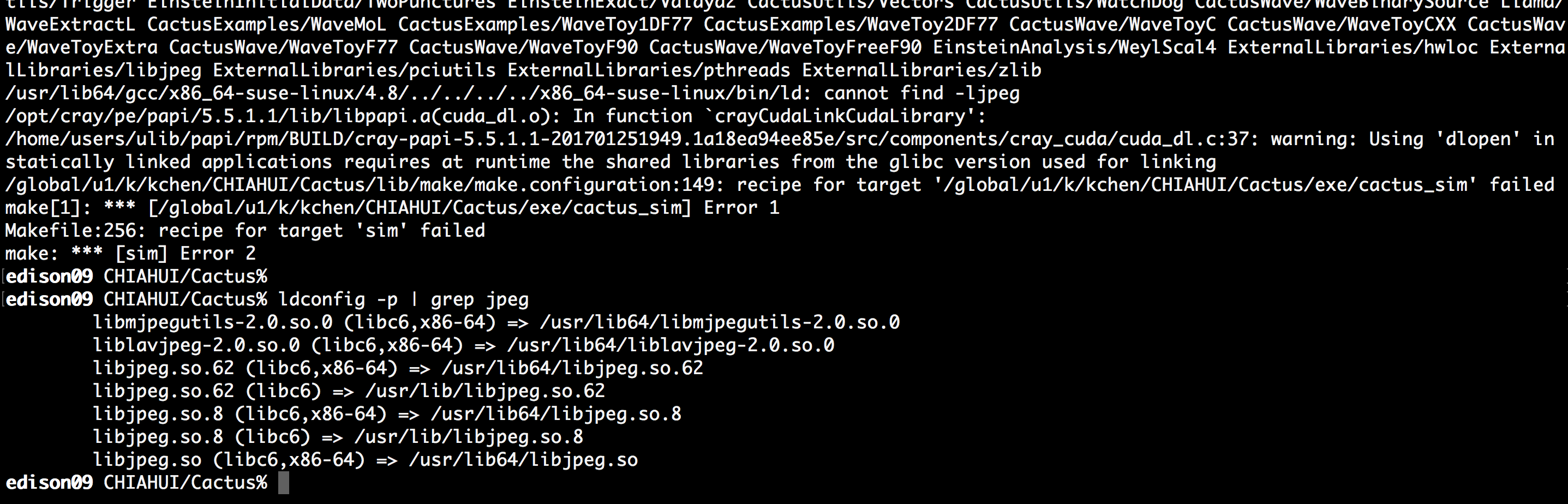

hmm. I am not sure about the -ljpeg since ExternalLibraries/libjpeg should provide this.

You are also receiving a link time warning about using dlopen in a statically linked application. While not directly related to the jpeg library issue a possible workaround is force dynamic linking (not the default one edison) by setting:

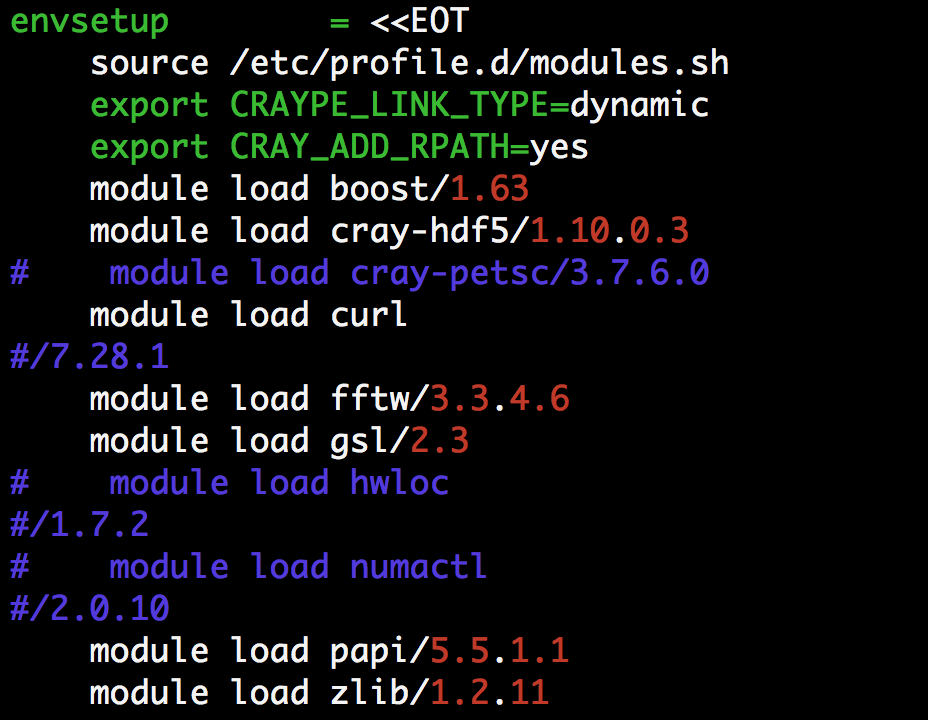

export CRAYPE_LINK_TYPE=dynamic export CRAY_ADD_RPATH=yes

either as part of the envsetup lines in the file simfactory/mdb/machine/edison.ini or on your command line (if eg not using simfactory).

Yours, Roland

Dear Roland, Thanks for your kindly help and sorry for replying such late. It indeed solved the error by using the second method you suggested. However another error occurred , the attached file is the screenshot of the error message. It seems the code cannot find the library of jepg , but I think it is not missing since I found some versions of it by using the command :ldconfig -p | grep jepg (showed in the screenshot). Although I tried several compilers including intel compiler version 16, it did not work. What kind of the problem is it and is there some possible solutions ? Thank you . Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月21日 上午 12:42 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

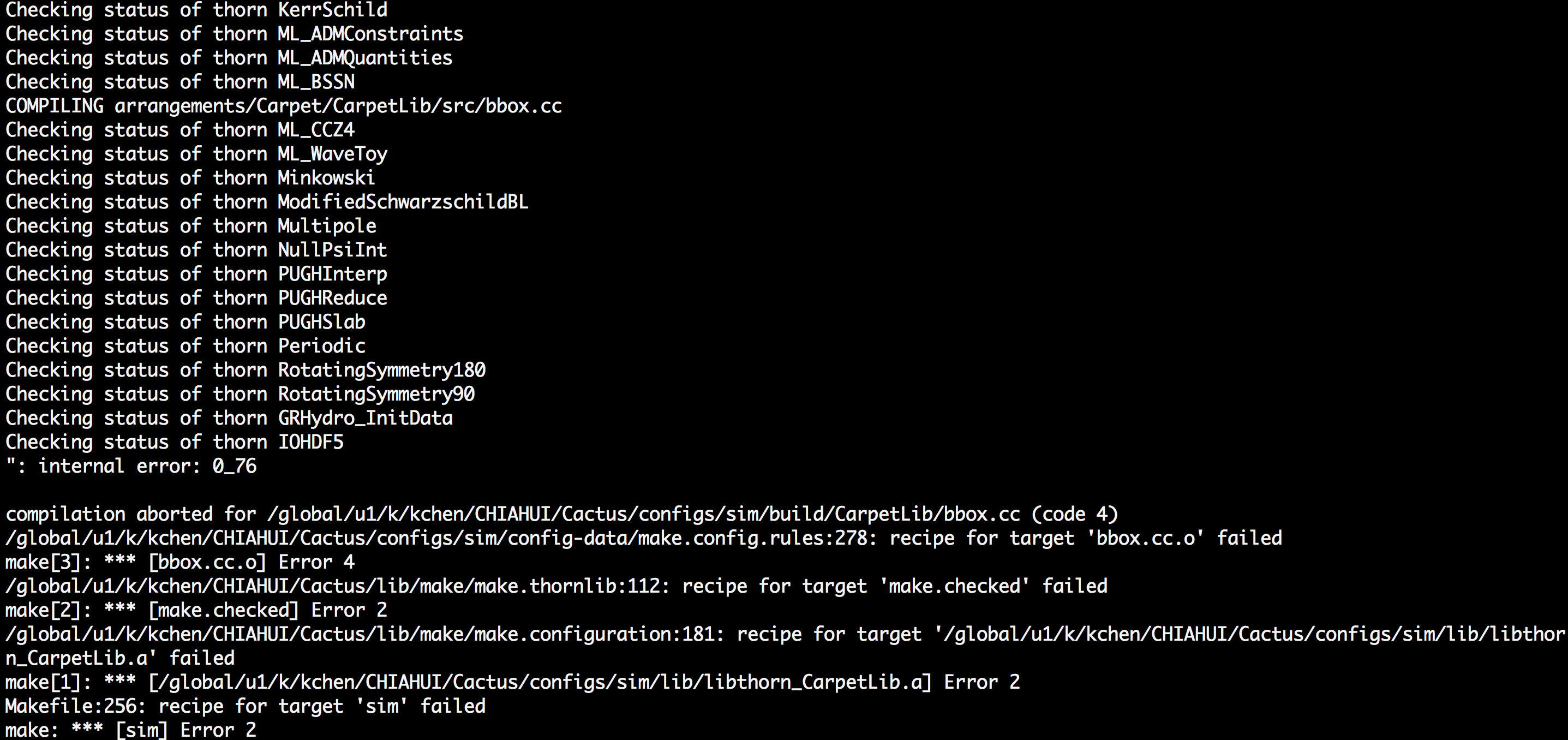

looking at your output (internal compiler failure when compiling bbox.cc) this seems to be an instance of this bug:

https://trac.einsteintoolkit.org/ticket/2021

there seem to be two way around this:

1. change the file edison.ini to load an older Intel compiler (version

2. edit the file repos/carpet/CarpetLib/src/bbox.cc and add at the

beginning:

#if __INTEL_COMPILER >= 1700 #pragma GCC optimization_level 1 #endif

which reduces the optimization level and avoids the problem.

Yours, Roland

...

Dear sir/madam, I am a master student of physics department ,National Taiwan University, and a beginner of Einstein toolkit. I started with my laptop and everything worked fine. While I turning to super cluster called Edison ,NERSC, some errors came up during compilation(that is, after I type the command:$ ./simfactory/bin/sim build ). 1.The attached file is the screenshot of the error message. It seems the error is caused by compiler. However the same error appeared after shifting the intel compiler to cray compiler or gnu compiler.How can I solve the error?

2.The machine definition file of Edison(edison.ini) is last tested in May,2015, so I am afraid that some information of the machine is outdated . Is this related to the previous problem(1.)? How can I update this file ?

Thanks for your help. Best regards, Chia Hui Lin

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

Hello Chia Hui Lin,

sorry for the delay, your email got sorted into the wrong folder.

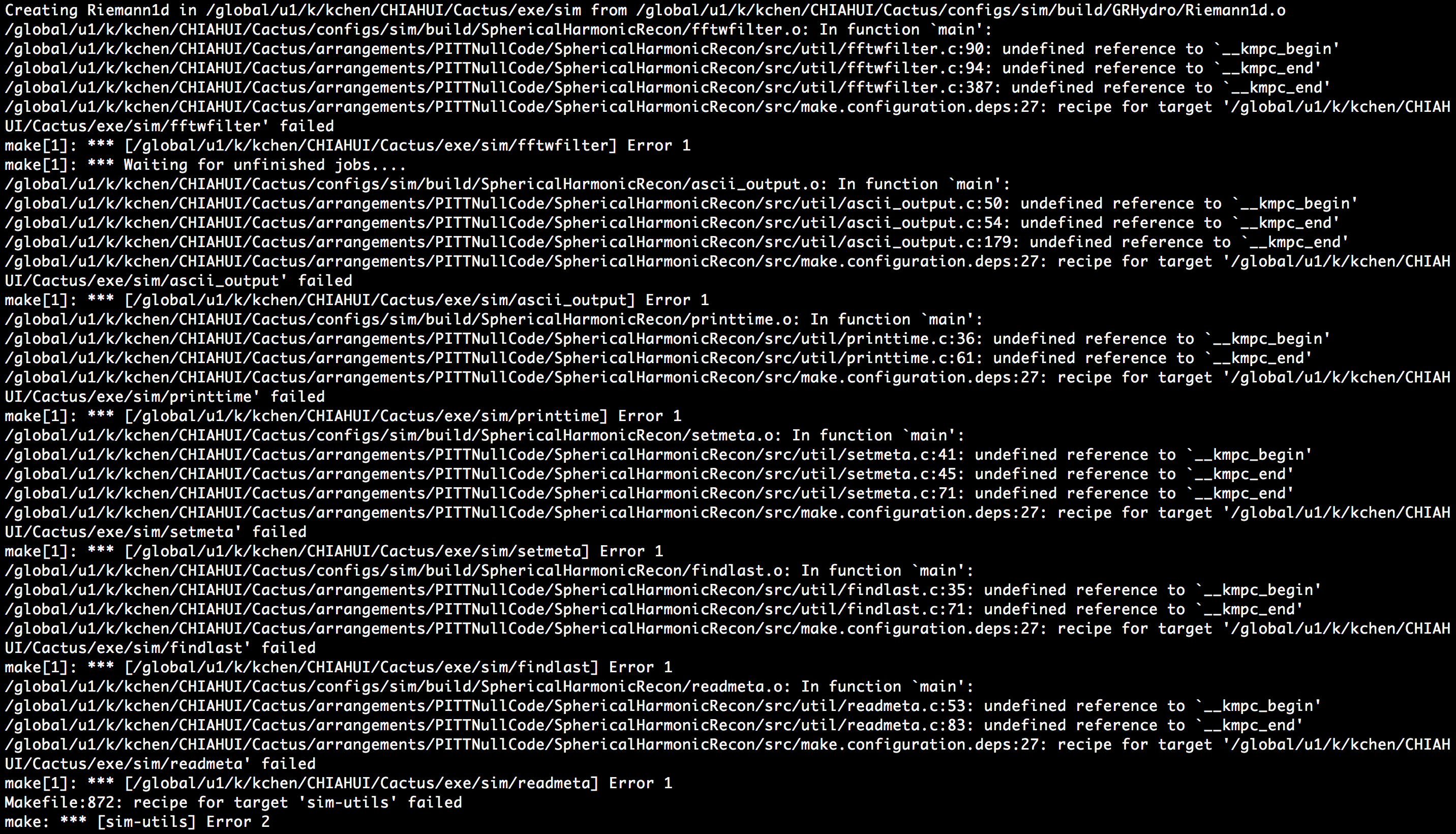

The error that you are seeing (kmpc stuff missing) is usually caused by a missing OpenMP flags. Please make sure you have:

OPENMP = yes CPP_OPENMP_FLAGS = -fopenmp FPP_OPENMP_FLAGS = -fopenmp C_OPENMP_FLAGS = -fopenmp CXX_OPENMP_FLAGS = -fopenmp F77_OPENMP_FLAGS = -fopenmp F90_OPENMP_FLAGS = -fopenmp

in you option list. You can also try and see if

LDFLAGS = -fopenmp

helps.

Note that this assumes that your are using the gcc or newer intel compilers. If you are using an older intel compile then the option is calles -openmp (no "f") instead.

The utilities are normally not crucial though and you can use Cactus without them.

Yours, Roland

Dear Roland, Thanks for your kindly reply ! Sorry for bothering you for several times. I tried your suggestion and solved the both error of -ljpeg and dlopen. And it was showed that: Done creating cactus_sim. All done ! However the compilation is not finished.The process of building utilities for sim started. And another error occurred, as showed in the screenshot. It seems to be similar to the problem in the link: http://lists.einsteintoolkit.org/pipermail/trac/2011-October/002449.html But I did not find a solution to this error.Is there some possible solution? By the way, I commented some module loading in the edison.ini since some of them cannot successfully loaded (maybe because the version of those modules are outdated , and some module even not appear in the module list of edison) . As showed in another screenshot. I am afraid that this caused the occurrence of some error.

Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月28日 上午 03:28 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

hmm. I am not sure about the -ljpeg since ExternalLibraries/libjpeg should provide this.

You are also receiving a link time warning about using dlopen in a statically linked application. While not directly related to the jpeg library issue a possible workaround is force dynamic linking (not the default one edison) by setting:

export CRAYPE_LINK_TYPE=dynamic export CRAY_ADD_RPATH=yes

either as part of the envsetup lines in the file simfactory/mdb/machine/edison.ini or on your command line (if eg not using simfactory).

Yours, Roland

...

Dear Roland, Thanks for your kindly help and sorry for replying such late. It indeed solved the error by using the second method you suggested. However another error occurred , the attached file is the screenshot of the error message. It seems the code cannot find the library of jepg , but I think it is not missing since I found some versions of it by using the command :ldconfig -p | grep jepg (showed in the screenshot). Although I tried several compilers including intel compiler version 16, it did not work. What kind of the problem is it and is there some possible solutions ? Thank you . Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月21日 上午 12:42 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

looking at your output (internal compiler failure when compiling bbox.cc) this seems to be an instance of this bug:

https://trac.einsteintoolkit.org/ticket/2021

there seem to be two way around this:

1. change the file edison.ini to load an older Intel compiler (version

2. edit the file repos/carpet/CarpetLib/src/bbox.cc and add at the

beginning:

#if __INTEL_COMPILER >= 1700 #pragma GCC optimization_level 1 #endif

which reduces the optimization level and avoids the problem.

Yours, Roland

...

Dear sir/madam, I am a master student of physics department ,National Taiwan University, and a beginner of Einstein toolkit. I started with my laptop and everything worked fine. While I turning to super cluster called Edison ,NERSC, some errors came up during compilation(that is, after I type the command:$ ./simfactory/bin/sim build ). 1.The attached file is the screenshot of the error message. It seems the error is caused by compiler. However the same error appeared after shifting the intel compiler to cray compiler or gnu compiler.How can I solve the error?

2.The machine definition file of Edison(edison.ini) is last tested in May,2015, so I am afraid that some information of the machine is outdated . Is this related to the previous problem(1.)? How can I update this file ?

Thanks for your help. Best regards, Chia Hui Lin

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

Hello Chia Hui,

Hmm, unfortunately I am not sure why you would get such an error message and have not personally seen this type of behaviour before.

You are doing all of this on NERSC's edison machine (at least tone of the screenshots seems to show you being on edison09), are you?

In that case I have to admit, I am a bit confused why you have so much trouble with the machine since edison is already supported by simfactory. You should be able to build without problems using the regular simfactory definition files like so:

cd Cactus simfactory/bin/sim build --thornlist manifest/einsteintoolkit.th

and then run eg the qc0 example:

simfactory/bin/sim submit qc0-test1 --procs 24 --walltime 4:0:0

which would run on one node (24 cores per node on edison) for 4 hours.

At least on July 15th 2017 edison was still functional in that I could run the Cactus test suites on it.

You should never have to use srun directly when using simfactory.

Looking at simfactory/mdb/runscripts/edison.run then srun should be used like so (once your job has started ie inside of a SLURM script or an interactive job):

export OMP_NUM_THREADS=<number_of_threads_per_mpi_rank> srun -n <number_of_mpi_ranks> -c $OMP_NUM_THREADS cactus_sim qc0.par

For completeness: simfactory uses the file simfactory/mdb/optionlists/edison.cfg as the options list, simfactory/mdb/runscripts/edison.run is what runs inside of the SLURM job and simfactory/mdb/submitscripts/edison.sub contains the required SLURM headers.

Yours, Roland

Dear Roland, Thanks for your information. Actually all flags which you list are not missing in my option list ,except the last one( LDFLAGS = -fopenmp).However it seems not working after I added it .The error message does not changed. Then I tried to ignore utilities and directly run an example code. It seems to be almost successful except the error: srun: error: ioctl(TIOCGWINSZ): Inappropriate ioctl for device srun: error: Not using a pseudo-terminal, disregarding --pty option I guess it is some error related to ssh . I have tried ssh -t , but not works. Am I on the right direction?

Best regards, Chia Hui ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年12月14日 下午 10:31 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

sorry for the delay, your email got sorted into the wrong folder.

The error that you are seeing (kmpc stuff missing) is usually caused by a missing OpenMP flags. Please make sure you have:

OPENMP = yes CPP_OPENMP_FLAGS = -fopenmp FPP_OPENMP_FLAGS = -fopenmp C_OPENMP_FLAGS = -fopenmp CXX_OPENMP_FLAGS = -fopenmp F77_OPENMP_FLAGS = -fopenmp F90_OPENMP_FLAGS = -fopenmp

in you option list. You can also try and see if

LDFLAGS = -fopenmp

helps.

Note that this assumes that your are using the gcc or newer intel compilers. If you are using an older intel compile then the option is calles -openmp (no "f") instead.

The utilities are normally not crucial though and you can use Cactus without them.

Yours, Roland

...

Dear Roland, Thanks for your kindly reply ! Sorry for bothering you for several times. I tried your suggestion and solved the both error of -ljpeg and dlopen. And it was showed that: Done creating cactus_sim. All done ! However the compilation is not finished.The process of building utilities for sim started. And another error occurred, as showed in the screenshot. It seems to be similar to the problem in the link: http://lists.einsteintoolkit.org/pipermail/trac/2011-October/002449.html But I did not find a solution to this error.Is there some possible solution? By the way, I commented some module loading in the edison.ini since some of them cannot successfully loaded (maybe because the version of those modules are outdated , and some module even not appear in the module list of edison) . As showed in another screenshot. I am afraid that this caused the occurrence of some error.

Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月28日 上午 03:28 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

hmm. I am not sure about the -ljpeg since ExternalLibraries/libjpeg should provide this.

You are also receiving a link time warning about using dlopen in a statically linked application. While not directly related to the jpeg library issue a possible workaround is force dynamic linking (not the default one edison) by setting:

export CRAYPE_LINK_TYPE=dynamic export CRAY_ADD_RPATH=yes

either as part of the envsetup lines in the file simfactory/mdb/machine/edison.ini or on your command line (if eg not using simfactory).

Yours, Roland

...

Dear Roland, Thanks for your kindly help and sorry for replying such late. It indeed solved the error by using the second method you suggested. However another error occurred , the attached file is the screenshot of the error message. It seems the code cannot find the library of jepg , but I think it is not missing since I found some versions of it by using the command :ldconfig -p | grep jepg (showed in the screenshot). Although I tried several compilers including intel compiler version 16, it did not work. What kind of the problem is it and is there some possible solutions ? Thank you . Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月21日 上午 12:42 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

looking at your output (internal compiler failure when compiling bbox.cc) this seems to be an instance of this bug:

https://trac.einsteintoolkit.org/ticket/2021

there seem to be two way around this:

1. change the file edison.ini to load an older Intel compiler (version

2. edit the file repos/carpet/CarpetLib/src/bbox.cc and add at the

beginning:

#if __INTEL_COMPILER >= 1700 #pragma GCC optimization_level 1 #endif

which reduces the optimization level and avoids the problem.

Yours, Roland

...

Dear sir/madam, I am a master student of physics department ,National Taiwan University, and a beginner of Einstein toolkit. I started with my laptop and everything worked fine. While I turning to super cluster called Edison ,NERSC, some errors came up during compilation(that is, after I type the command:$ ./simfactory/bin/sim build ). 1.The attached file is the screenshot of the error message. It seems the error is caused by compiler. However the same error appeared after shifting the intel compiler to cray compiler or gnu compiler.How can I solve the error?

2.The machine definition file of Edison(edison.ini) is last tested in May,2015, so I am afraid that some information of the machine is outdated . Is this related to the previous problem(1.)? How can I update this file ?

Thanks for your help. Best regards, Chia Hui Lin

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

Hello Chia Hui,

given that edison was tested in July it would seems as if NERSC updated their module stack (and removed old ones).

I am updating the simfactory settings and testing again right now. Should not take too long.

sourcebasedir and basedir may well require adjusting for each user though we normally try to keep them fairly generic. Note that edison shares some directories with cori which is why we sandwich in a work_edison in the directories.

The files you included look sane to me.

Yours, Roland

Dear Roland, Thank you again. I am afraid that maybe I missed something important or made some mistake while installation and setting up. However what I did is almost following the tutorial , except for some parts like machine set up ,including sourcebasedir and basedir, which is dependent on users. And I found some parts of the edison.ini file,which is default, are outdated. For example, versions of some modules are not available so I comment or change them . I wonder what is the cause of so much problems as well.

Attached files are the four files of edison which I used. Maybe there is some problem which I did not notice. If you can take a minute a check them , I will be very appreciate. The example simulation I ran is from the new version of tutorial: https://nbviewer.jupyter.org/github/nds-org/jupyter-et/blob/master/CactusTut...

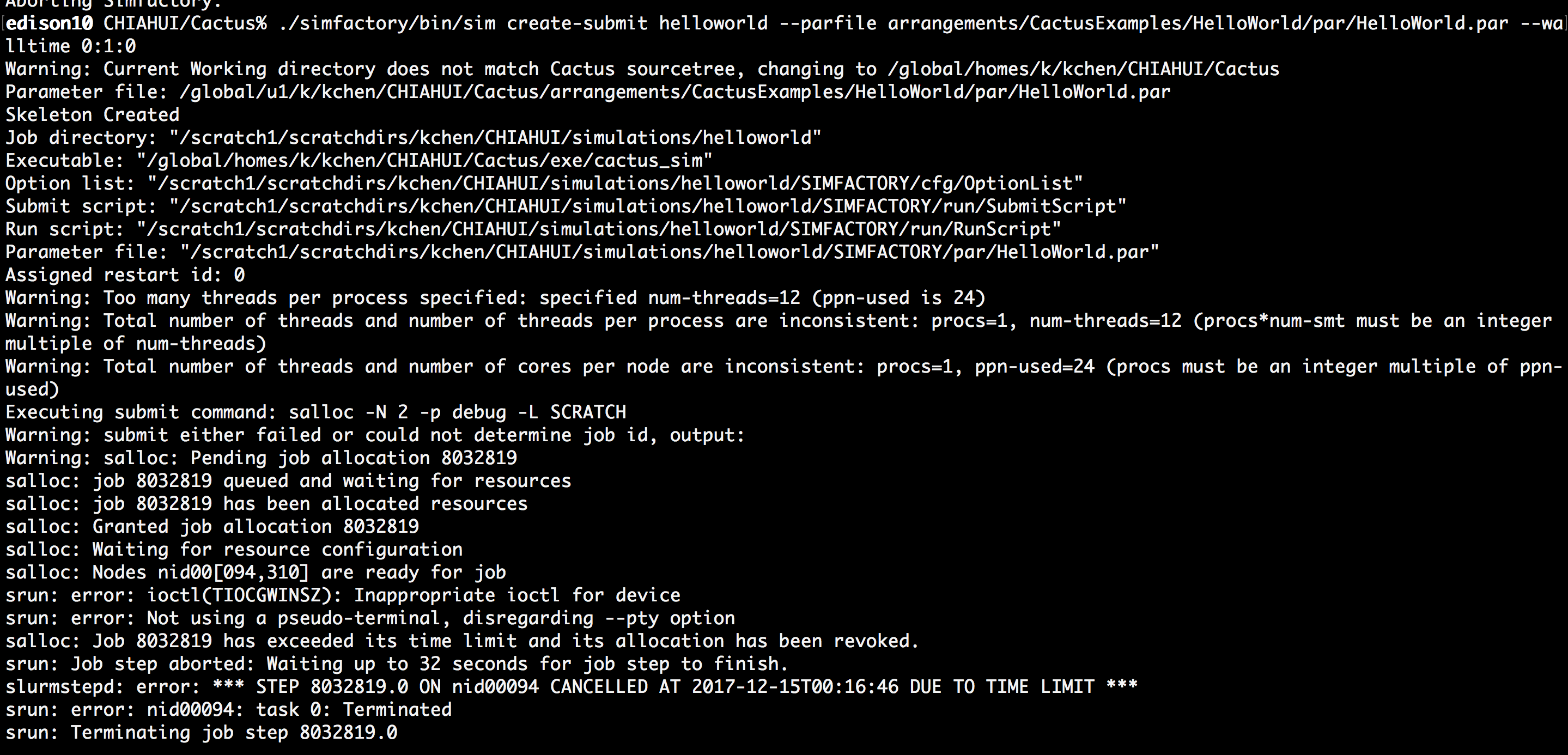

./simfactory/bin/sim create-submit helloworld --parfile arrangements/CactusExamples/HelloWorld/par/HelloWorld.par --walltime 0:5:0

And the error message is showed in another figure of attached file. It seems the job was successfully submitted but fail to run.

Best regards, Chia Hui ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年12月15日 上午 03:27 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui,

Hmm, unfortunately I am not sure why you would get such an error message and have not personally seen this type of behaviour before.

You are doing all of this on NERSC's edison machine (at least tone of the screenshots seems to show you being on edison09), are you?

In that case I have to admit, I am a bit confused why you have so much trouble with the machine since edison is already supported by simfactory. You should be able to build without problems using the regular simfactory definition files like so:

cd Cactus simfactory/bin/sim build --thornlist manifest/einsteintoolkit.th

and then run eg the qc0 example:

simfactory/bin/sim submit qc0-test1 --procs 24 --walltime 4:0:0

which would run on one node (24 cores per node on edison) for 4 hours.

At least on July 15th 2017 edison was still functional in that I could run the Cactus test suites on it.

You should never have to use srun directly when using simfactory.

Looking at simfactory/mdb/runscripts/edison.run then srun should be used like so (once your job has started ie inside of a SLURM script or an interactive job):

export OMP_NUM_THREADS=<number_of_threads_per_mpi_rank> srun -n <number_of_mpi_ranks> -c $OMP_NUM_THREADS cactus_sim qc0.par

For completeness: simfactory uses the file simfactory/mdb/optionlists/edison.cfg as the options list, simfactory/mdb/runscripts/edison.run is what runs inside of the SLURM job and simfactory/mdb/submitscripts/edison.sub contains the required SLURM headers.

Yours, Roland

...

Dear Roland, Thanks for your information. Actually all flags which you list are not missing in my option list ,except the last one( LDFLAGS = -fopenmp).However it seems not working after I added it .The error message does not changed. Then I tried to ignore utilities and directly run an example code. It seems to be almost successful except the error: srun: error: ioctl(TIOCGWINSZ): Inappropriate ioctl for device srun: error: Not using a pseudo-terminal, disregarding --pty option I guess it is some error related to ssh . I have tried ssh -t , but not works. Am I on the right direction?

Best regards, Chia Hui ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年12月14日 下午 10:31 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

sorry for the delay, your email got sorted into the wrong folder.

The error that you are seeing (kmpc stuff missing) is usually caused by a missing OpenMP flags. Please make sure you have:

OPENMP = yes CPP_OPENMP_FLAGS = -fopenmp FPP_OPENMP_FLAGS = -fopenmp C_OPENMP_FLAGS = -fopenmp CXX_OPENMP_FLAGS = -fopenmp F77_OPENMP_FLAGS = -fopenmp F90_OPENMP_FLAGS = -fopenmp

in you option list. You can also try and see if

LDFLAGS = -fopenmp

helps.

Note that this assumes that your are using the gcc or newer intel compilers. If you are using an older intel compile then the option is calles -openmp (no "f") instead.

The utilities are normally not crucial though and you can use Cactus without them.

Yours, Roland

...

Dear Roland, Thanks for your kindly reply ! Sorry for bothering you for several times. I tried your suggestion and solved the both error of -ljpeg and dlopen. And it was showed that: Done creating cactus_sim. All done ! However the compilation is not finished.The process of building utilities for sim started. And another error occurred, as showed in the screenshot. It seems to be similar to the problem in the link: http://lists.einsteintoolkit.org/pipermail/trac/2011-October/002449.html But I did not find a solution to this error.Is there some possible solution? By the way, I commented some module loading in the edison.ini since some of them cannot successfully loaded (maybe because the version of those modules are outdated , and some module even not appear in the module list of edison) . As showed in another screenshot. I am afraid that this caused the occurrence of some error.

Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月28日 上午 03:28 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

hmm. I am not sure about the -ljpeg since ExternalLibraries/libjpeg should provide this.

You are also receiving a link time warning about using dlopen in a statically linked application. While not directly related to the jpeg library issue a possible workaround is force dynamic linking (not the default one edison) by setting:

export CRAYPE_LINK_TYPE=dynamic export CRAY_ADD_RPATH=yes

either as part of the envsetup lines in the file simfactory/mdb/machine/edison.ini or on your command line (if eg not using simfactory).

Yours, Roland

...

Dear Roland, Thanks for your kindly help and sorry for replying such late. It indeed solved the error by using the second method you suggested. However another error occurred , the attached file is the screenshot of the error message. It seems the code cannot find the library of jepg , but I think it is not missing since I found some versions of it by using the command :ldconfig -p | grep jepg (showed in the screenshot). Although I tried several compilers including intel compiler version 16, it did not work. What kind of the problem is it and is there some possible solutions ? Thank you . Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月21日 上午 12:42 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

looking at your output (internal compiler failure when compiling bbox.cc) this seems to be an instance of this bug:

https://trac.einsteintoolkit.org/ticket/2021

there seem to be two way around this:

1. change the file edison.ini to load an older Intel compiler (version

2. edit the file repos/carpet/CarpetLib/src/bbox.cc and add at the

beginning:

#if __INTEL_COMPILER >= 1700 #pragma GCC optimization_level 1 #endif

which reduces the optimization level and avoids the problem.

Yours, Roland

...

Dear sir/madam, I am a master student of physics department ,National Taiwan University, and a beginner of Einstein toolkit. I started with my laptop and everything worked fine. While I turning to super cluster called Edison ,NERSC, some errors came up during compilation(that is, after I type the command:$ ./simfactory/bin/sim build ). 1.The attached file is the screenshot of the error message. It seems the error is caused by compiler. However the same error appeared after shifting the intel compiler to cray compiler or gnu compiler.How can I solve the error?

2.The machine definition file of Edison(edison.ini) is last tested in May,2015, so I am afraid that some information of the machine is outdated . Is this related to the previous problem(1.)? How can I update this file ?

Thanks for your help. Best regards, Chia Hui Lin

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

Dear Roland, Thank you for your testing. It also took several hours for me to compile the code which should be down in 20 min. Did the similar situation occur when Edison is tested last time ? Actually there are two other clusters I can use. But they are not supported by Einstein toolkit . I have tried to compile the code on them but failed since the required information for a new cluster is quite detailed and I cannot find all of them. Will you suggest me to shift to another cluster which is unsupported ?

Best regards, Chia Hui

________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年12月18日 上午 01:04 至: 林家暉 副本: rhaas@ncsa.illinois.edu; users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui,

this may take a bit longer. Edison seems to be incredibly slow at compiling the code, literally taking hours for the full compile and what feels like minutes for each tesk in the configure stage of the Cactus compile.

I am not sure why, my guess would actually be that it is related to the intel license server since the login node is neither busy with high cpu load nor does the compiler spend a lot of time in "D" state (ie waiting for IO).

I can confirm though that I am seeing similar linking issues as you were seeing.

Yours, Roland

Hello Chia Hui,

given that edison was tested in July it would seems as if NERSC updated their module stack (and removed old ones).

I am updating the simfactory settings and testing again right now. Should not take too long.

sourcebasedir and basedir may well require adjusting for each user though we normally try to keep them fairly generic. Note that edison shares some directories with cori which is why we sandwich in a work_edison in the directories.

The files you included look sane to me.

Yours, Roland

...

Dear Roland, Thank you again. I am afraid that maybe I missed something important or made some mistake while installation and setting up. However what I did is almost following the tutorial , except for some parts like machine set up ,including sourcebasedir and basedir, which is dependent on users. And I found some parts of the edison.ini file,which is default, are outdated. For example, versions of some modules are not available so I comment or change them . I wonder what is the cause of so much problems as well.

Attached files are the four files of edison which I used. Maybe there is some problem which I did not notice. If you can take a minute a check them , I will be very appreciate. The example simulation I ran is from the new version of tutorial: https://nbviewer.jupyter.org/github/nds-org/jupyter-et/blob/master/CactusTut...

./simfactory/bin/sim create-submit helloworld --parfile arrangements/CactusExamples/HelloWorld/par/HelloWorld.par --walltime 0:5:0

And the error message is showed in another figure of attached file. It seems the job was successfully submitted but fail to run.

Best regards, Chia Hui ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年12月15日 上午 03:27 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui,

Hmm, unfortunately I am not sure why you would get such an error message and have not personally seen this type of behaviour before.

You are doing all of this on NERSC's edison machine (at least tone of the screenshots seems to show you being on edison09), are you?

In that case I have to admit, I am a bit confused why you have so much trouble with the machine since edison is already supported by simfactory. You should be able to build without problems using the regular simfactory definition files like so:

cd Cactus simfactory/bin/sim build --thornlist manifest/einsteintoolkit.th

and then run eg the qc0 example:

simfactory/bin/sim submit qc0-test1 --procs 24 --walltime 4:0:0

which would run on one node (24 cores per node on edison) for 4 hours.

At least on July 15th 2017 edison was still functional in that I could run the Cactus test suites on it.

You should never have to use srun directly when using simfactory.

Looking at simfactory/mdb/runscripts/edison.run then srun should be used like so (once your job has started ie inside of a SLURM script or an interactive job):

export OMP_NUM_THREADS=<number_of_threads_per_mpi_rank> srun -n <number_of_mpi_ranks> -c $OMP_NUM_THREADS cactus_sim qc0.par

For completeness: simfactory uses the file simfactory/mdb/optionlists/edison.cfg as the options list, simfactory/mdb/runscripts/edison.run is what runs inside of the SLURM job and simfactory/mdb/submitscripts/edison.sub contains the required SLURM headers.

Yours, Roland

...

Dear Roland, Thanks for your information. Actually all flags which you list are not missing in my option list ,except the last one( LDFLAGS = -fopenmp).However it seems not working after I added it .The error message does not changed. Then I tried to ignore utilities and directly run an example code. It seems to be almost successful except the error: srun: error: ioctl(TIOCGWINSZ): Inappropriate ioctl for device srun: error: Not using a pseudo-terminal, disregarding --pty option I guess it is some error related to ssh . I have tried ssh -t , but not works. Am I on the right direction?

Best regards, Chia Hui ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年12月14日 下午 10:31 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

sorry for the delay, your email got sorted into the wrong folder.

The error that you are seeing (kmpc stuff missing) is usually caused by a missing OpenMP flags. Please make sure you have:

OPENMP = yes CPP_OPENMP_FLAGS = -fopenmp FPP_OPENMP_FLAGS = -fopenmp C_OPENMP_FLAGS = -fopenmp CXX_OPENMP_FLAGS = -fopenmp F77_OPENMP_FLAGS = -fopenmp F90_OPENMP_FLAGS = -fopenmp

in you option list. You can also try and see if

LDFLAGS = -fopenmp

helps.

Note that this assumes that your are using the gcc or newer intel compilers. If you are using an older intel compile then the option is calles -openmp (no "f") instead.

The utilities are normally not crucial though and you can use Cactus without them.

Yours, Roland

...

Dear Roland, Thanks for your kindly reply ! Sorry for bothering you for several times. I tried your suggestion and solved the both error of -ljpeg and dlopen. And it was showed that: Done creating cactus_sim. All done ! However the compilation is not finished.The process of building utilities for sim started. And another error occurred, as showed in the screenshot. It seems to be similar to the problem in the link: http://lists.einsteintoolkit.org/pipermail/trac/2011-October/002449.html But I did not find a solution to this error.Is there some possible solution? By the way, I commented some module loading in the edison.ini since some of them cannot successfully loaded (maybe because the version of those modules are outdated , and some module even not appear in the module list of edison) . As showed in another screenshot. I am afraid that this caused the occurrence of some error.

Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月28日 上午 03:28 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

hmm. I am not sure about the -ljpeg since ExternalLibraries/libjpeg should provide this.

You are also receiving a link time warning about using dlopen in a statically linked application. While not directly related to the jpeg library issue a possible workaround is force dynamic linking (not the default one edison) by setting:

export CRAYPE_LINK_TYPE=dynamic export CRAY_ADD_RPATH=yes

either as part of the envsetup lines in the file simfactory/mdb/machine/edison.ini or on your command line (if eg not using simfactory).

Yours, Roland

...

Dear Roland, Thanks for your kindly help and sorry for replying such late. It indeed solved the error by using the second method you suggested. However another error occurred , the attached file is the screenshot of the error message. It seems the code cannot find the library of jepg , but I think it is not missing since I found some versions of it by using the command :ldconfig -p | grep jepg (showed in the screenshot). Although I tried several compilers including intel compiler version 16, it did not work. What kind of the problem is it and is there some possible solutions ? Thank you . Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月21日 上午 12:42 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

looking at your output (internal compiler failure when compiling bbox.cc) this seems to be an instance of this bug:

https://trac.einsteintoolkit.org/ticket/2021

there seem to be two way around this:

1. change the file edison.ini to load an older Intel compiler (version

2. edit the file repos/carpet/CarpetLib/src/bbox.cc and add at the

beginning:

#if __INTEL_COMPILER >= 1700 #pragma GCC optimization_level 1 #endif

which reduces the optimization level and avoids the problem.

Yours, Roland

...

Dear sir/madam, I am a master student of physics department ,National Taiwan University, and a beginner of Einstein toolkit. I started with my laptop and everything worked fine. While I turning to super cluster called Edison ,NERSC, some errors came up during compilation(that is, after I type the command:$ ./simfactory/bin/sim build ). 1.The attached file is the screenshot of the error message. It seems the error is caused by compiler. However the same error appeared after shifting the intel compiler to cray compiler or gnu compiler.How can I solve the error?

2.The machine definition file of Edison(edison.ini) is last tested in May,2015, so I am afraid that some information of the machine is outdated . Is this related to the previous problem(1.)? How can I update this file ?

Thanks for your help. Best regards, Chia Hui Lin

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://keys.gnupg.net.

Hi, I struggled for days trying to get ET installed on Stampede2 (no problems on Stampede1, so some issue about the different environment, which is supposed to be KNL oriented). It worked 100% with very little intervention on my part for Bridges, compiling in about an hour. On Stampede2, after some suggestions from various people I managed to get all the object files and libraries built for all the thorns, but then it didn't like a couple of the arguments being passed to ld, which are hard to fix because it's not at all obvious how to modify the make-cycle. I could go into all the details of snags I hit for anyone who is interested. Anyways, as Roland suggests, trying a different resource might be a very good idea because the process seems rather sensitive the local environment. --Joel

-----Original Message----- From: users-bounces@einsteintoolkit.org [mailto:users-bounces@einsteintoolkit.org] On Behalf Of Roland Haas Sent: Friday, December 22, 2017 12:05 PM To: 林家暉 r06222015@ntu.edu.tw Cc: rhaas@ncsa.illinois.edu; users@einsteintoolkit.org Subject: Re: [Users] questions about compilation

Hello Chia Hui,

sorry for the long delay, I got caught up with Christmas preparations.

It also took several hours for me to compile the code which should be down in 20 min. Did the similar situation occur when Edison is tested last time ?

No I do not think that it took so long to compile on edison before. I am tempted to see if using the gnu compiler would be any faster. This is right now so painfully slow as to render the system almost unusable. it also does not help if one tries to compile in /dev/shm or from within an interactive job so the "usual" remedies for slow compilation do not apply.

Actually there are two other clusters I can use. But they are not supported by Einstein toolkit . I have tried to compile the code on them but failed since the required information for a new cluster is quite detailed and I cannot find all of them. Will you suggest me to shift to another cluster which is unsupported ?

If you want to use a different cluster then I would try and start from the files for a similar, working one. Eg for Cray machines the bluewaters-gnu files are a good starting point or maybe the cori ones (it being a newer cray).

We have a wiki page:

https://docs.einsteintoolkit.org/et-docs/Configuring_a_new_machine

that describes the procedure and would be happy to help out on the mailing list (or on the system if one of us has an account there).

Yours, Roland

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://keys.gnupg.net.

Dear Roland and Joel, Thanks for your kindly reply. I can use two other machines from my supervisor . They are the following:

1.NAOJ CfCA XC30 ,which is located in Tokyo ,Japan https://www.nao.ac.jp/en/project/cfca.html

2.YITP XC40 ,which is located in Kyoto ,Japan http://www2.yukawa.kyoto-u.ac.jp/~computer.room/cgi-bin/yitpinfo-web.cgi

Both of them are Cray machines , I think I will try NAOJ CfCA XC30 first and start with bluewaters-gnu files as you suggested.

If possible,please inform me if there is any updated progress on edison. Thank you . Best regards, Chia Hui ________________________________________ 從: Roland Haas [rhaas@illinois.edu] 寄件日期: 2017年12月23日 上午 01:37 至: Joel Giedt; 'Roland Haas'; 林家暉 副本: rhaas@ncsa.illinois.edu; users@einsteintoolkit.org 主旨: RE: [Users] questions about compilation

Hello Joel,

ohoh. Sorry to hear that you had so much trouble on stampede2. I think I have a set of working files for both its knl and skx partitions yet they may be only in the master or maybe even a separate (rhaas/stampede2) branch of simfactory.

Usually it is best to use a tested system yes. Also good is if the system has a fast queue turnaround time.

Yours, Roland

On December 22, 2017 12:15:52 PM EST, Joel Giedt giedtj@rpi.edu wrote:

Hi, I struggled for days trying to get ET installed on Stampede2 (no problems on Stampede1, so some issue about the different environment, which is supposed to be KNL oriented). It worked 100% with very little intervention on my part for Bridges, compiling in about an hour. On Stampede2, after some suggestions from various people I managed to get all the object files and libraries built for all the thorns, but then it didn't like a couple of the arguments being passed to ld, which are hard to fix because it's not at all obvious how to modify the make-cycle. I could go into all the details of snags I hit for anyone who is interested. Anyways, as Roland suggests, trying a different resource might be a very good idea because the process seems rather sensitive the local environment. --Joel

-----Original Message----- From: users-bounces@einsteintoolkit.org [mailto:users-bounces@einsteintoolkit.org] On Behalf Of Roland Haas Sent: Friday, December 22, 2017 12:05 PM To: 林家暉 r06222015@ntu.edu.tw Cc: rhaas@ncsa.illinois.edu; users@einsteintoolkit.org Subject: Re: [Users] questions about compilation

Hello Chia Hui,

sorry for the long delay, I got caught up with Christmas preparations.

...

It also took several hours for me to compile the code which should be

...

down in 20 min. Did the similar situation occur when Edison is tested

...

last time ?

No I do not think that it took so long to compile on edison before. I am tempted to see if using the gnu compiler would be any faster. This is right now so painfully slow as to render the system almost unusable. it also does not help if one tries to compile in /dev/shm or from within an interactive job so the "usual" remedies for slow compilation do not apply.

...

Actually there are two other clusters I can use. But they are not supported by Einstein toolkit . I have tried to compile the code on them but failed since the required information for a new cluster is quite detailed and I cannot find all of them. Will you suggest me to shift to another cluster which is unsupported ?

If you want to use a different cluster then I would try and start from the files for a similar, working one. Eg for Cray machines the bluewaters-gnu files are a good starting point or maybe the cori ones (it being a newer cray).

We have a wiki page:

https://docs.einsteintoolkit.org/et-docs/Configuring_a_new_machine

that describes the procedure and would be happy to help out on the mailing list (or on the system if one of us has an account there).

Yours, Roland

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://keys.gnupg.net.

-- Sent from my Android device with K-9 Mail. Please excuse my brevity.

Hello Chia Hui,

sorry for the long delay.

Things should now be fine in the master branch of simfactory (git checkout master).

Changes:

* updated loaded modules * remove setting INTEL_LICENSE_FILE variable to wrong value (this was the slow compile)

I have no idea why it still compiled with LICENSE_FILE set to the wrong value. All license servers listed could not be contacted (each one gives a 10 second timeout hence the very slow compile).

You will still need to modify the file

repos/carpet/CarpetLib/src/bbox.cc to have the beginning:

#if __INTEL_COMPILER >= 1700 #pragma GCC optimization_level 1 #endif

All of these changes should make it into the next ET release due February.

Thank you very much for your patience.

Yours, Roland

Dear Roland, Thank you for your testing. It also took several hours for me to compile the code which should be down in 20 min. Did the similar situation occur when Edison is tested last time ? Actually there are two other clusters I can use. But they are not supported by Einstein toolkit . I have tried to compile the code on them but failed since the required information for a new cluster is quite detailed and I cannot find all of them. Will you suggest me to shift to another cluster which is unsupported ?

Best regards, Chia Hui

---

從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年12月18日 上午 01:04 至: 林家暉 副本: rhaas@ncsa.illinois.edu; users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui,

this may take a bit longer. Edison seems to be incredibly slow at compiling the code, literally taking hours for the full compile and what feels like minutes for each tesk in the configure stage of the Cactus compile.

I am not sure why, my guess would actually be that it is related to the intel license server since the login node is neither busy with high cpu load nor does the compiler spend a lot of time in "D" state (ie waiting for IO).

I can confirm though that I am seeing similar linking issues as you were seeing.

Yours, Roland

...

Hello Chia Hui,

given that edison was tested in July it would seems as if NERSC updated their module stack (and removed old ones).

I am updating the simfactory settings and testing again right now. Should not take too long.

sourcebasedir and basedir may well require adjusting for each user though we normally try to keep them fairly generic. Note that edison shares some directories with cori which is why we sandwich in a work_edison in the directories.

The files you included look sane to me.

Yours, Roland

...

Dear Roland, Thank you again. I am afraid that maybe I missed something important or made some mistake while installation and setting up. However what I did is almost following the tutorial , except for some parts like machine set up ,including sourcebasedir and basedir, which is dependent on users. And I found some parts of the edison.ini file,which is default, are outdated. For example, versions of some modules are not available so I comment or change them . I wonder what is the cause of so much problems as well.

Attached files are the four files of edison which I used. Maybe there is some problem which I did not notice. If you can take a minute a check them , I will be very appreciate. The example simulation I ran is from the new version of tutorial: https://nbviewer.jupyter.org/github/nds-org/jupyter-et/blob/master/CactusTut...

./simfactory/bin/sim create-submit helloworld --parfile arrangements/CactusExamples/HelloWorld/par/HelloWorld.par --walltime 0:5:0

And the error message is showed in another figure of attached file. It seems the job was successfully submitted but fail to run.

Best regards, Chia Hui ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年12月15日 上午 03:27 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui,

Hmm, unfortunately I am not sure why you would get such an error message and have not personally seen this type of behaviour before.

You are doing all of this on NERSC's edison machine (at least tone of the screenshots seems to show you being on edison09), are you?

In that case I have to admit, I am a bit confused why you have so much trouble with the machine since edison is already supported by simfactory. You should be able to build without problems using the regular simfactory definition files like so:

cd Cactus simfactory/bin/sim build --thornlist manifest/einsteintoolkit.th

and then run eg the qc0 example:

simfactory/bin/sim submit qc0-test1 --procs 24 --walltime 4:0:0

which would run on one node (24 cores per node on edison) for 4 hours.

At least on July 15th 2017 edison was still functional in that I could run the Cactus test suites on it.

You should never have to use srun directly when using simfactory.

Looking at simfactory/mdb/runscripts/edison.run then srun should be used like so (once your job has started ie inside of a SLURM script or an interactive job):

export OMP_NUM_THREADS=<number_of_threads_per_mpi_rank> srun -n <number_of_mpi_ranks> -c $OMP_NUM_THREADS cactus_sim qc0.par

For completeness: simfactory uses the file simfactory/mdb/optionlists/edison.cfg as the options list, simfactory/mdb/runscripts/edison.run is what runs inside of the SLURM job and simfactory/mdb/submitscripts/edison.sub contains the required SLURM headers.

Yours, Roland

...

Dear Roland, Thanks for your information. Actually all flags which you list are not missing in my option list ,except the last one( LDFLAGS = -fopenmp).However it seems not working after I added it .The error message does not changed. Then I tried to ignore utilities and directly run an example code. It seems to be almost successful except the error: srun: error: ioctl(TIOCGWINSZ): Inappropriate ioctl for device srun: error: Not using a pseudo-terminal, disregarding --pty option I guess it is some error related to ssh . I have tried ssh -t , but not works. Am I on the right direction?

Best regards, Chia Hui ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年12月14日 下午 10:31 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

sorry for the delay, your email got sorted into the wrong folder.

The error that you are seeing (kmpc stuff missing) is usually caused by a missing OpenMP flags. Please make sure you have:

OPENMP = yes CPP_OPENMP_FLAGS = -fopenmp FPP_OPENMP_FLAGS = -fopenmp C_OPENMP_FLAGS = -fopenmp CXX_OPENMP_FLAGS = -fopenmp F77_OPENMP_FLAGS = -fopenmp F90_OPENMP_FLAGS = -fopenmp

in you option list. You can also try and see if

LDFLAGS = -fopenmp

helps.

Note that this assumes that your are using the gcc or newer intel compilers. If you are using an older intel compile then the option is calles -openmp (no "f") instead.

The utilities are normally not crucial though and you can use Cactus without them.

Yours, Roland

...

Dear Roland, Thanks for your kindly reply ! Sorry for bothering you for several times. I tried your suggestion and solved the both error of -ljpeg and dlopen. And it was showed that: Done creating cactus_sim. All done ! However the compilation is not finished.The process of building utilities for sim started. And another error occurred, as showed in the screenshot. It seems to be similar to the problem in the link: http://lists.einsteintoolkit.org/pipermail/trac/2011-October/002449.html But I did not find a solution to this error.Is there some possible solution? By the way, I commented some module loading in the edison.ini since some of them cannot successfully loaded (maybe because the version of those modules are outdated , and some module even not appear in the module list of edison) . As showed in another screenshot. I am afraid that this caused the occurrence of some error.

Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月28日 上午 03:28 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

hmm. I am not sure about the -ljpeg since ExternalLibraries/libjpeg should provide this.

You are also receiving a link time warning about using dlopen in a statically linked application. While not directly related to the jpeg library issue a possible workaround is force dynamic linking (not the default one edison) by setting:

export CRAYPE_LINK_TYPE=dynamic export CRAY_ADD_RPATH=yes

either as part of the envsetup lines in the file simfactory/mdb/machine/edison.ini or on your command line (if eg not using simfactory).

Yours, Roland

...

Dear Roland, Thanks for your kindly help and sorry for replying such late. It indeed solved the error by using the second method you suggested. However another error occurred , the attached file is the screenshot of the error message. It seems the code cannot find the library of jepg , but I think it is not missing since I found some versions of it by using the command :ldconfig -p | grep jepg (showed in the screenshot). Although I tried several compilers including intel compiler version 16, it did not work. What kind of the problem is it and is there some possible solutions ? Thank you . Best regards, Chia Hui Lin ________________________________________ 從: Roland Haas [roland.haas@physics.gatech.edu] 寄件日期: 2017年11月21日 上午 12:42 至: 林家暉 副本: users@einsteintoolkit.org 主旨: Re: [Users] questions about compilation

Hello Chia Hui Lin,

looking at your output (internal compiler failure when compiling bbox.cc) this seems to be an instance of this bug:

https://trac.einsteintoolkit.org/ticket/2021

there seem to be two way around this:

1. change the file edison.ini to load an older Intel compiler (version

2. edit the file repos/carpet/CarpetLib/src/bbox.cc and add at the

beginning:

#if __INTEL_COMPILER >= 1700 #pragma GCC optimization_level 1 #endif

which reduces the optimization level and avoids the problem.

Yours, Roland

> Dear sir/madam, > I am a master student of physics department ,National Taiwan University, and a beginner of Einstein toolkit. > I started with my laptop and everything worked fine. While I turning to super cluster called Edison ,NERSC, some errors came up during compilation(that is, after I type the command:$ ./simfactory/bin/sim build ). > 1.The attached file is the screenshot of the error message. It seems the error is caused by compiler. However the same error appeared after shifting the intel compiler to cray compiler or gnu compiler.How can I solve the error? > > 2.The machine definition file of Edison(edison.ini) is last tested in May,2015, so I am afraid that some information of the machine is outdated . Is this related to the previous problem(1.)? How can I update this file ? > > Thanks for your help. > Best regards, > Chia Hui Lin > >

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://keys.gnupg.net.

Hello Chia-Hui,

Is the LICENSE problem the critical part in this compilation problem of edison? and

"Critical" in the sense that it speeds up your compilation significantly, but given that it compiles without, if you did manage to compile without you are fine.

Do you mean that I am recommended to download and install ET again on edison in February when the next ET is released ?

Yes, unfortunately we do no normally offer a way to "upgrade" an existing Einstein Toolkit installation eg from the Hack (2017_05) release to the upcoming release 2018_02. We basically ask people to do a full new checkout (and full recompile). This is due to the fact that the ET uses multiple git repositories so having a single "release" point is hard for us. There is also a chance that some thorns will move from using subversion to using git in the next release making an "update" even harder.

One can try and git a git fetch and git checkout to the new release branches manually but this is dangerous and will not always work.

Yours, Roland

On 20 Jan 2018, at 16:11, 林家暉 r06222015@ntu.edu.tw wrote:

Dear Roland, Thanks for your answering. I am looking forward to the next release of ET and I would try it on edison at that time. So before then, I would try ET on other machine. Best regards, Chia-Hui Lin

Hi Roland,

Shouldn't these changes be backported to the current release?

On 21 Jan 2018, at 17:16, Roland Haas <rhaas@illinois.edu mailto:rhaas@illinois.edu> wrote:

Hello Ian,

...

Shouldn't these changes be backported to the current release?

Sure. Would only be for a couple of weeks though. I am happy to backport them though.

That would allow the machine to be used for science now by people just running "git pull" in the simfactory directory, rather than waiting until the end of February for the next release.

-- Ian Hinder http://members.aei.mpg.de/ianhin http://members.aei.mpg.de/ianhin
