Hi Ian,

Thanks for replying. This didn't work for me, but I understand your logic. Is there a way that I can determine how many threads per process my simfactory is configured for? That way I should be able to specify the exact # of procs right?

Thanks!

--

Chad Henshaw Georgia Institute of Technology - Physics

________________________________ From: ian.hinder@aei.mpg.de ian.hinder@aei.mpg.de Sent: Monday, October 1, 2018 5:06:24 PM To: Gomard-Henshaw, Chad Cc: Einstein Toolkit Users Subject: Re: [Users] Issue running the default qc0-mclachlan.par

On 28 Sep 2018, at 18:48, Gomard-Henshaw, Chad <cgomard@gatech.edumailto:cgomard@gatech.edu> wrote:

Hello,

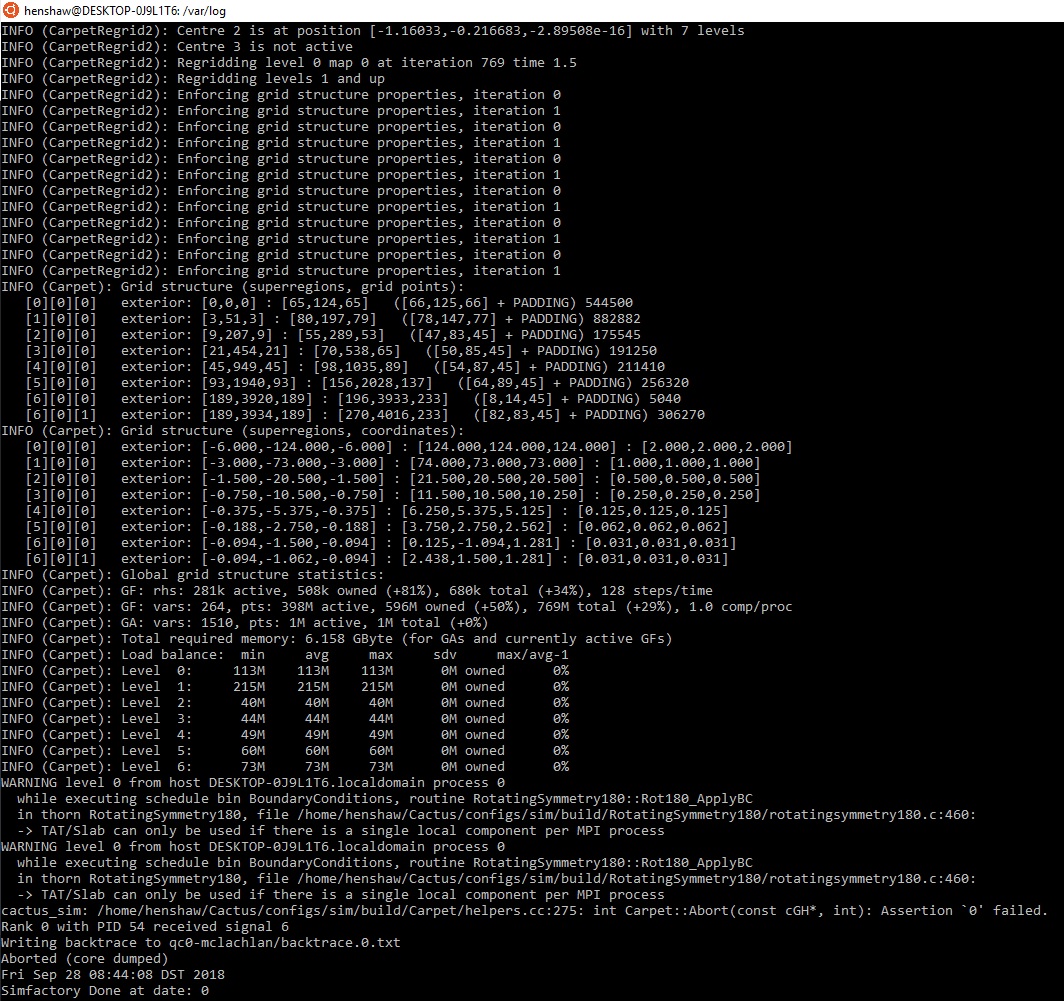

When running the default qc0 simulation, I get an error (see attached). This was run using the following command in the windows linux subshell:

./simfactory/bin/sim create-run qc05 \ --parfile=par/qc0-mclachlan.par

The simulation runs for about an hour before aborting; I get partial output files but only with two data points. Can you please advise on how to address this issue?

Hi,

We should have a FAQ... You need to run on at least two processes, due to internal limitations in the code. So add

--procs 2

to your create-run command line.

[I don't know exactly how your machine is configured in simfactory; if it is configured to use more than one thread per process, then you need to use enough "--procs" (which really means "threads") that at least two MPI processes are used.]

-- Ian Hinder https://ianhinder.net

Hi Roland,

Thanks for the reply. I completely re-installed and compiled ETK and tried to run qc0 using this command:

./simfactory/bin/sim create-run qc0 \ --parfile=par/qc0-mclachlan.par --procs=2 --num-threads=1 --ppn-used=2

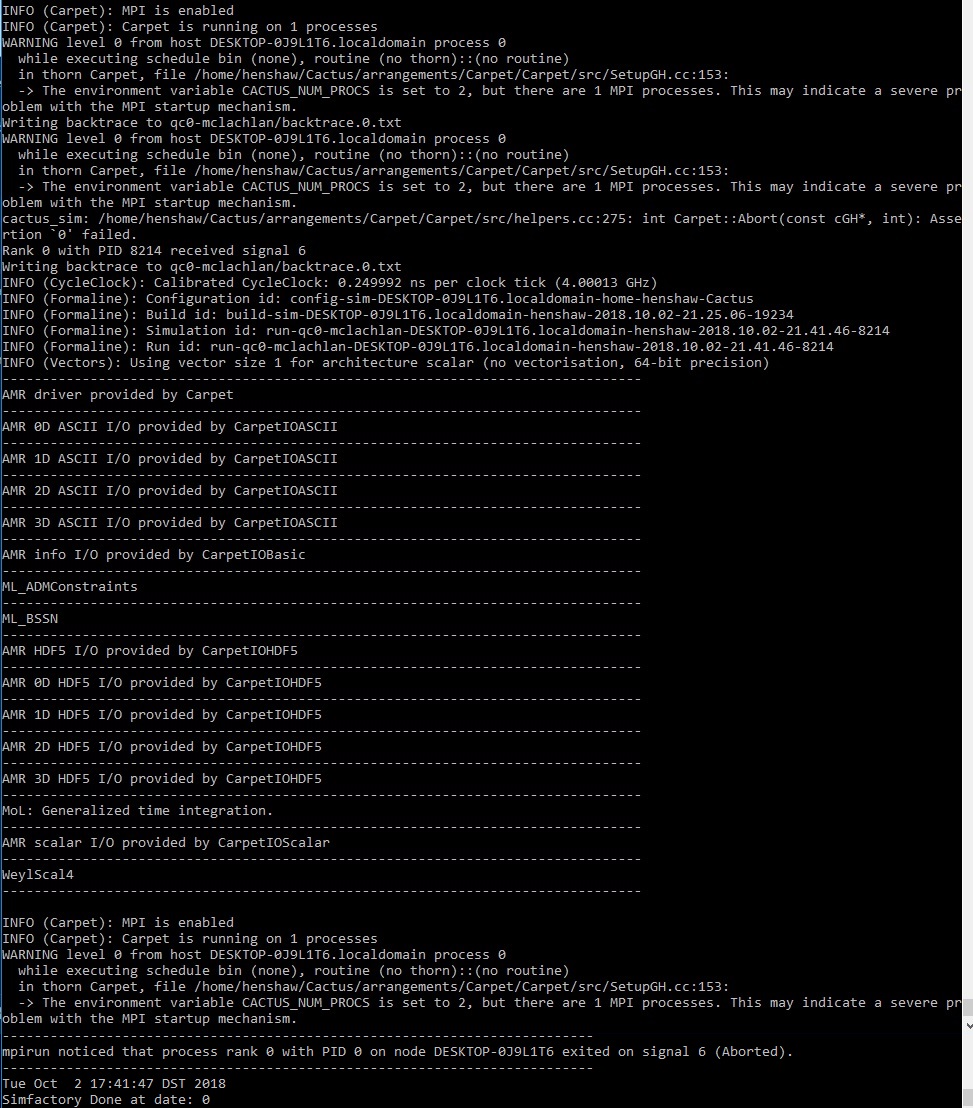

The program runs only for a moment before I get a new error (attached). I'm not sure how to interpret this, could you take a look?

Much appreciated!

--

Chad Henshaw Georgia Institute of Technology - Physics

________________________________ From: Roland Haas rhaas@illinois.edu Sent: Tuesday, October 2, 2018 8:20:02 AM To: Gomard-Henshaw, Chad Cc: ian.hinder@aei.mpg.de; Einstein Toolkit Users Subject: Re: [Users] Issue running the default qc0-mclachlan.par

Hello Chad,

that information can be read out of eg the RunScript that you can find in simulations/XXX/output-0000/SIMFACTORY/RunScript or (the default value anyway) from

simfactory/bin/sim print-mdb-entry $(simfactory/bin/sim whoami | awk '{print $NF}') | grep threads max-num-threads = 12 num-threads = 6

You can also force the issue by using:

./simfactory/bin/sim create-run static_tov --parfile=par/static_tov_small_short.par --procs=2 --num-threads=1 --ppn-used=2 --walltime=8:0:0

which uses 2 threads in total (procs=2) with 1 thread per MPI rank (num-threads=1) and makes simfactory believe that there are 2 cores present (ppn-used=2). This results in 2 MPI ranks with 1 thread each.

Yours, Roland

Hi Ian,

Thanks for replying. This didn't work for me, but I understand your logic. Is there a way that I can determine how many threads per process my simfactory is configured for? That way I should be able to specify the exact # of procs right?

Thanks!

--

Chad Henshaw Georgia Institute of Technology - Physics

---

From: ian.hinder@aei.mpg.de ian.hinder@aei.mpg.de Sent: Monday, October 1, 2018 5:06:24 PM To: Gomard-Henshaw, Chad Cc: Einstein Toolkit Users Subject: Re: [Users] Issue running the default qc0-mclachlan.par

On 28 Sep 2018, at 18:48, Gomard-Henshaw, Chad <cgomard@gatech.edumailto:cgomard@gatech.edu> wrote:

Hello,

When running the default qc0 simulation, I get an error (see attached). This was run using the following command in the windows linux subshell:

./simfactory/bin/sim create-run qc05 \ --parfile=par/qc0-mclachlan.par

The simulation runs for about an hour before aborting; I get partial output files but only with two data points. Can you please advise on how to address this issue?

Hi,

We should have a FAQ... You need to run on at least two processes, due to internal limitations in the code. So add

--procs 2

to your create-run command line.

[I don't know exactly how your machine is configured in simfactory; if it is configured to use more than one thread per process, then you need to use enough "--procs" (which really means "threads") that at least two MPI processes are used.]

-- Ian Hinder https://ianhinder.net

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

Hi Roland,

My apologies regarding the screenshots. I've tried running the simulation using the submit command as you suggested (I'm running on a regular workstation). Here is the complete text:

./simfactory/bin/sim submit qc00-submit1 \

--parfile=par/qc0-mclachlan.par --procs=2 --num-threads=1 --ppn-used=2

Warning: simulation "qc00-submit1" does not exist or is not readable Parameter file: /home/henshaw/Cactus/par/qc0-mclachlan.par Skeleton Created Job directory: "/home/henshaw/simulations/qc00-submit1" Executable: "/home/henshaw/Cactus/exe/cactus_sim" Option list: "/home/henshaw/simulations/qc00-submit1/SIMFACTORY/cfg/OptionList" Submit script: "/home/henshaw/simulations/qc00-submit1/SIMFACTORY/run/SubmitScript" Run script: "/home/henshaw/simulations/qc00-submit1/SIMFACTORY/run/RunScript" Parameter file: "/home/henshaw/simulations/qc00-submit1/SIMFACTORY/par/qc0-mclachlan.par" Assigned restart id: 0 Executing submit command: exec nohup /home/henshaw/simulations/qc00-submit1/output-0000/SIMFACTORY/SubmitScript < /dev/null > /dev/null 2> /dev/null & echo $! Submit finished, job id is 39

Attached are the .out , .err, and backtrace files, it looks like I'm getting the same error as before. I don't quite understand your comment about multiple MPI stacks being installed - how would I know if this is the case?

Thanks for your help.

--

Chad Henshaw Georgia Institute of Technology - Physics

________________________________ From: Roland Haas rhaas@illinois.edu Sent: Tuesday, October 2, 2018 8:27:23 PM To: Gomard-Henshaw, Chad Cc: ian.hinder@aei.mpg.de; Einstein Toolkit Users Subject: Re: [Users] Issue running the default qc0-mclachlan.par

Hello Chad,

please do not just provide the error messages as a screenshot since this shows only last couple of lines and makes it very hard to read the error messages. Instead please copy and paste the actual text into the email.

Ideally even provide the *.out and *.err files in the output-XXXX directory (if they exist) as attachments to the email.

The error you are observing can be caused by a faulty MPI stack in particular if the code is compiled with one MPI library but run with another.

You can often determine that by looking at the output of the *.err and *.out files and checking whether the output is duplicated. In your case since you used create-run no such file was created so that is not quite possible.

Looking at the output there are for example two "Writing backtrace to qc0-mchlachlan/backtrace.0.txt" (hope I typed in this path correctly) lines while there should be only one since the text is output in ./repos/carpet/CarpetLib/src/backtrace.cc only once.

I would try using the more commonly used "submit" command to start the simulation then check the out and err files ie:

./simfactory/bin/sim submit qc00-submit1 \ --parfile=par/qc0-mclachlan.par --procs=2 --num-threads=1 --ppn-used=2

I would also check if perhaps more than one MPI stack has been installed (eg MPICH and OpenMPI). This machine is your laptop/workstation or is this a cluster?

Yours, Roland

Hi Roland,

Thanks for the reply. I completely re-installed and compiled ETK and tried to run qc0 using this command:

./simfactory/bin/sim create-run qc0 \ --parfile=par/qc0-mclachlan.par --procs=2 --num-threads=1 --ppn-used=2

The program runs only for a moment before I get a new error (attached). I'm not sure how to interpret this, could you take a look?

Much appreciated!

--

Chad Henshaw Georgia Institute of Technology - Physics

---

From: Roland Haas rhaas@illinois.edu Sent: Tuesday, October 2, 2018 8:20:02 AM To: Gomard-Henshaw, Chad Cc: ian.hinder@aei.mpg.de; Einstein Toolkit Users Subject: Re: [Users] Issue running the default qc0-mclachlan.par

Hello Chad,

that information can be read out of eg the RunScript that you can find in simulations/XXX/output-0000/SIMFACTORY/RunScript or (the default value anyway) from

simfactory/bin/sim print-mdb-entry $(simfactory/bin/sim whoami | awk '{print $NF}') | grep threads max-num-threads = 12 num-threads = 6

You can also force the issue by using:

./simfactory/bin/sim create-run static_tov --parfile=par/static_tov_small_short.par --procs=2 --num-threads=1 --ppn-used=2 --walltime=8:0:0

which uses 2 threads in total (procs=2) with 1 thread per MPI rank (num-threads=1) and makes simfactory believe that there are 2 cores present (ppn-used=2). This results in 2 MPI ranks with 1 thread each.

Yours, Roland

...

Hi Ian,

Thanks for replying. This didn't work for me, but I understand your logic. Is there a way that I can determine how many threads per process my simfactory is configured for? That way I should be able to specify the exact # of procs right?

Thanks!

--

Chad Henshaw Georgia Institute of Technology - Physics

---

From: ian.hinder@aei.mpg.de ian.hinder@aei.mpg.de Sent: Monday, October 1, 2018 5:06:24 PM To: Gomard-Henshaw, Chad Cc: Einstein Toolkit Users Subject: Re: [Users] Issue running the default qc0-mclachlan.par

On 28 Sep 2018, at 18:48, Gomard-Henshaw, Chad <cgomard@gatech.edumailto:cgomard@gatech.edu> wrote:

Hello,

When running the default qc0 simulation, I get an error (see attached). This was run using the following command in the windows linux subshell:

./simfactory/bin/sim create-run qc05 \ --parfile=par/qc0-mclachlan.par

The simulation runs for about an hour before aborting; I get partial output files but only with two data points. Can you please advise on how to address this issue?

Hi,

We should have a FAQ... You need to run on at least two processes, due to internal limitations in the code. So add

--procs 2

to your create-run command line.

[I don't know exactly how your machine is configured in simfactory; if it is configured to use more than one thread per process, then you need to use enough "--procs" (which really means "threads") that at least two MPI processes are used.]

-- Ian Hinder https://ianhinder.net

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://keys.gnupg.net.

Roland,

Removing OpenMPI worked for me and I was able to run qc0 to completion. For anyone else who runs into this issue I am operating on Ubuntu through WSL.

Thank you so much for your help!

--

Chad Henshaw Georgia Institute of Technology - Physics

________________________________ From: Roland Haas rhaas@illinois.edu Sent: Friday, October 5, 2018 11:57:43 AM To: Gomard-Henshaw, Chad Cc: ian.hinder@aei.mpg.de; Einstein Toolkit Users Subject: Re: [Users] Issue running the default qc0-mclachlan.par

Hello Chad,

thank you for the files.

Assuming that you have already tried compiling from scratch (ie running "rm -rf configs/sim" before simfactory/bin/sim build) to make sure the issue is not between an MPI stack installed by your package manager and the copy of OpenMPI that Cactus can compile itself from the source code in arrangements/ExternalLibraries/MPI if it does not detect an installed MPI stack then you can check for which ones are installed using your system's package manager.

Basically on

Ubuntu/Debian/Mint:

dpkg --list | grep -i mpi | grep -iv compil

Centos/Fedora/RedHat/OpenSUSE:

rpm -qa | grep -i mpi | grep -iv compil

which show all installed packages whose name contains "mpi" but not "compil" (ignore case). If in there you find more than one of:

* OpenMPI * Mpich * mvapich * impi

then you have multiple stacks installed and should uninstall (using apt-get, yum, zypper or whatever the package manager is called) all but one.

Yours, Roland

Hi Roland,

My apologies regarding the screenshots. I've tried running the simulation using the submit command as you suggested (I'm running on a regular workstation). Here is the complete text:

./simfactory/bin/sim submit qc00-submit1 \

...

--parfile=par/qc0-mclachlan.par --procs=2 --num-threads=1 --ppn-used=2

Warning: simulation "qc00-submit1" does not exist or is not readable Parameter file: /home/henshaw/Cactus/par/qc0-mclachlan.par Skeleton Created Job directory: "/home/henshaw/simulations/qc00-submit1" Executable: "/home/henshaw/Cactus/exe/cactus_sim" Option list: "/home/henshaw/simulations/qc00-submit1/SIMFACTORY/cfg/OptionList" Submit script: "/home/henshaw/simulations/qc00-submit1/SIMFACTORY/run/SubmitScript" Run script: "/home/henshaw/simulations/qc00-submit1/SIMFACTORY/run/RunScript" Parameter file: "/home/henshaw/simulations/qc00-submit1/SIMFACTORY/par/qc0-mclachlan.par" Assigned restart id: 0 Executing submit command: exec nohup /home/henshaw/simulations/qc00-submit1/output-0000/SIMFACTORY/SubmitScript < /dev/null > /dev/null 2> /dev/null & echo $! Submit finished, job id is 39

Attached are the .out , .err, and backtrace files, it looks like I'm getting the same error as before. I don't quite understand your comment about multiple MPI stacks being installed - how would I know if this is the case?

Thanks for your help.

--

Chad Henshaw Georgia Institute of Technology - Physics

---

From: Roland Haas rhaas@illinois.edu Sent: Tuesday, October 2, 2018 8:27:23 PM To: Gomard-Henshaw, Chad Cc: ian.hinder@aei.mpg.de; Einstein Toolkit Users Subject: Re: [Users] Issue running the default qc0-mclachlan.par

Hello Chad,

please do not just provide the error messages as a screenshot since this shows only last couple of lines and makes it very hard to read the error messages. Instead please copy and paste the actual text into the email.

Ideally even provide the *.out and *.err files in the output-XXXX directory (if they exist) as attachments to the email.

The error you are observing can be caused by a faulty MPI stack in particular if the code is compiled with one MPI library but run with another.

You can often determine that by looking at the output of the *.err and *.out files and checking whether the output is duplicated. In your case since you used create-run no such file was created so that is not quite possible.

Looking at the output there are for example two "Writing backtrace to qc0-mchlachlan/backtrace.0.txt" (hope I typed in this path correctly) lines while there should be only one since the text is output in ./repos/carpet/CarpetLib/src/backtrace.cc only once.

I would try using the more commonly used "submit" command to start the simulation then check the out and err files ie:

./simfactory/bin/sim submit qc00-submit1 \ --parfile=par/qc0-mclachlan.par --procs=2 --num-threads=1 --ppn-used=2

I would also check if perhaps more than one MPI stack has been installed (eg MPICH and OpenMPI). This machine is your laptop/workstation or is this a cluster?

Yours, Roland

...

Hi Roland,

Thanks for the reply. I completely re-installed and compiled ETK and tried to run qc0 using this command:

./simfactory/bin/sim create-run qc0 \ --parfile=par/qc0-mclachlan.par --procs=2 --num-threads=1 --ppn-used=2

The program runs only for a moment before I get a new error (attached). I'm not sure how to interpret this, could you take a look?

Much appreciated!

--

Chad Henshaw Georgia Institute of Technology - Physics

---

From: Roland Haas rhaas@illinois.edu Sent: Tuesday, October 2, 2018 8:20:02 AM To: Gomard-Henshaw, Chad Cc: ian.hinder@aei.mpg.de; Einstein Toolkit Users Subject: Re: [Users] Issue running the default qc0-mclachlan.par

Hello Chad,

that information can be read out of eg the RunScript that you can find in simulations/XXX/output-0000/SIMFACTORY/RunScript or (the default value anyway) from

simfactory/bin/sim print-mdb-entry $(simfactory/bin/sim whoami | awk '{print $NF}') | grep threads max-num-threads = 12 num-threads = 6

You can also force the issue by using:

./simfactory/bin/sim create-run static_tov --parfile=par/static_tov_small_short.par --procs=2 --num-threads=1 --ppn-used=2 --walltime=8:0:0

which uses 2 threads in total (procs=2) with 1 thread per MPI rank (num-threads=1) and makes simfactory believe that there are 2 cores present (ppn-used=2). This results in 2 MPI ranks with 1 thread each.

Yours, Roland

...

Hi Ian,

Thanks for replying. This didn't work for me, but I understand your logic. Is there a way that I can determine how many threads per process my simfactory is configured for? That way I should be able to specify the exact # of procs right?

Thanks!

--

Chad Henshaw Georgia Institute of Technology - Physics

---

From: ian.hinder@aei.mpg.de ian.hinder@aei.mpg.de Sent: Monday, October 1, 2018 5:06:24 PM To: Gomard-Henshaw, Chad Cc: Einstein Toolkit Users Subject: Re: [Users] Issue running the default qc0-mclachlan.par

On 28 Sep 2018, at 18:48, Gomard-Henshaw, Chad <cgomard@gatech.edumailto:cgomard@gatech.edu> wrote:

Hello,

When running the default qc0 simulation, I get an error (see attached). This was run using the following command in the windows linux subshell:

./simfactory/bin/sim create-run qc05 \ --parfile=par/qc0-mclachlan.par

The simulation runs for about an hour before aborting; I get partial output files but only with two data points. Can you please advise on how to address this issue?

Hi,

We should have a FAQ... You need to run on at least two processes, due to internal limitations in the code. So add

--procs 2

to your create-run command line.

[I don't know exactly how your machine is configured in simfactory; if it is configured to use more than one thread per process, then you need to use enough "--procs" (which really means "threads") that at least two MPI processes are used.]

-- Ian Hinder https://ianhinder.net

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://keys.gnupg.net.

-- My email is as private as my paper mail. I therefore support encrypting and signing email messages. Get my PGP key from http://pgp.mit.edu .
